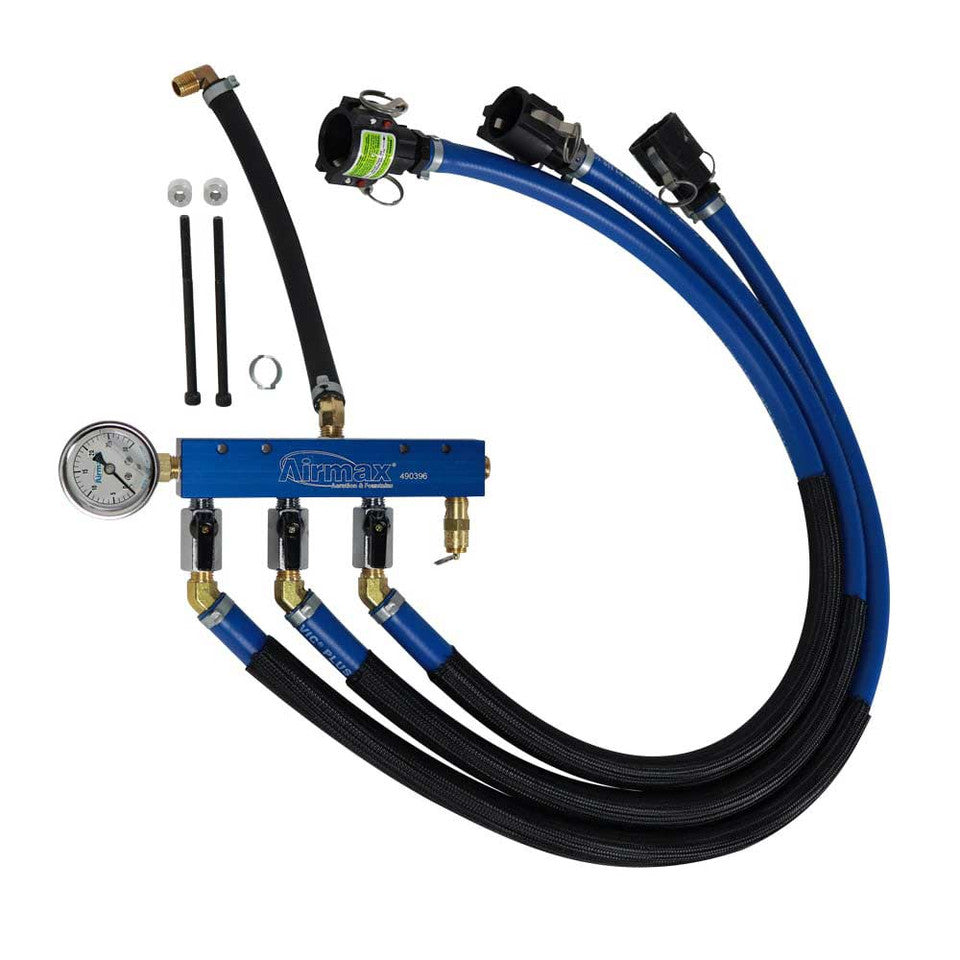

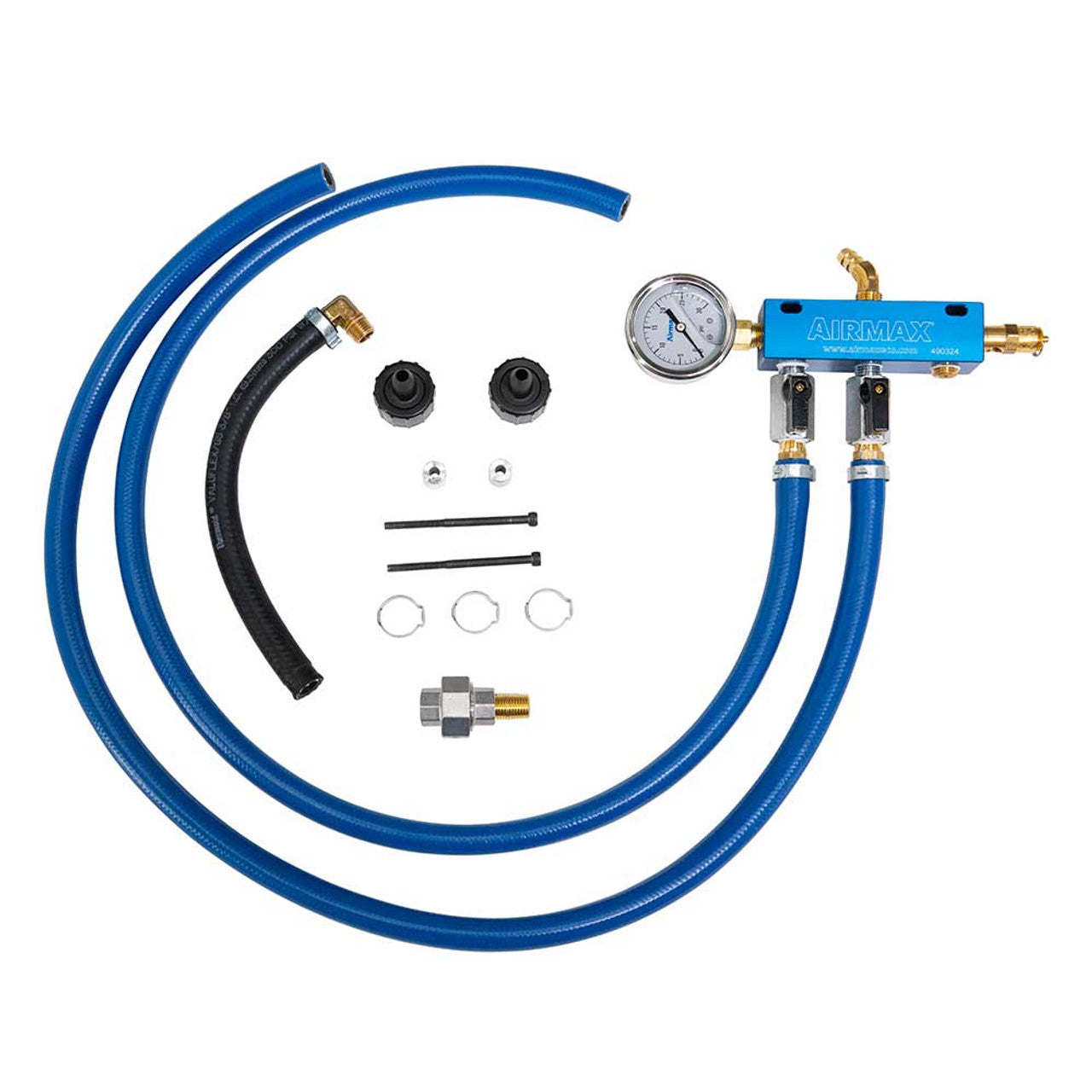

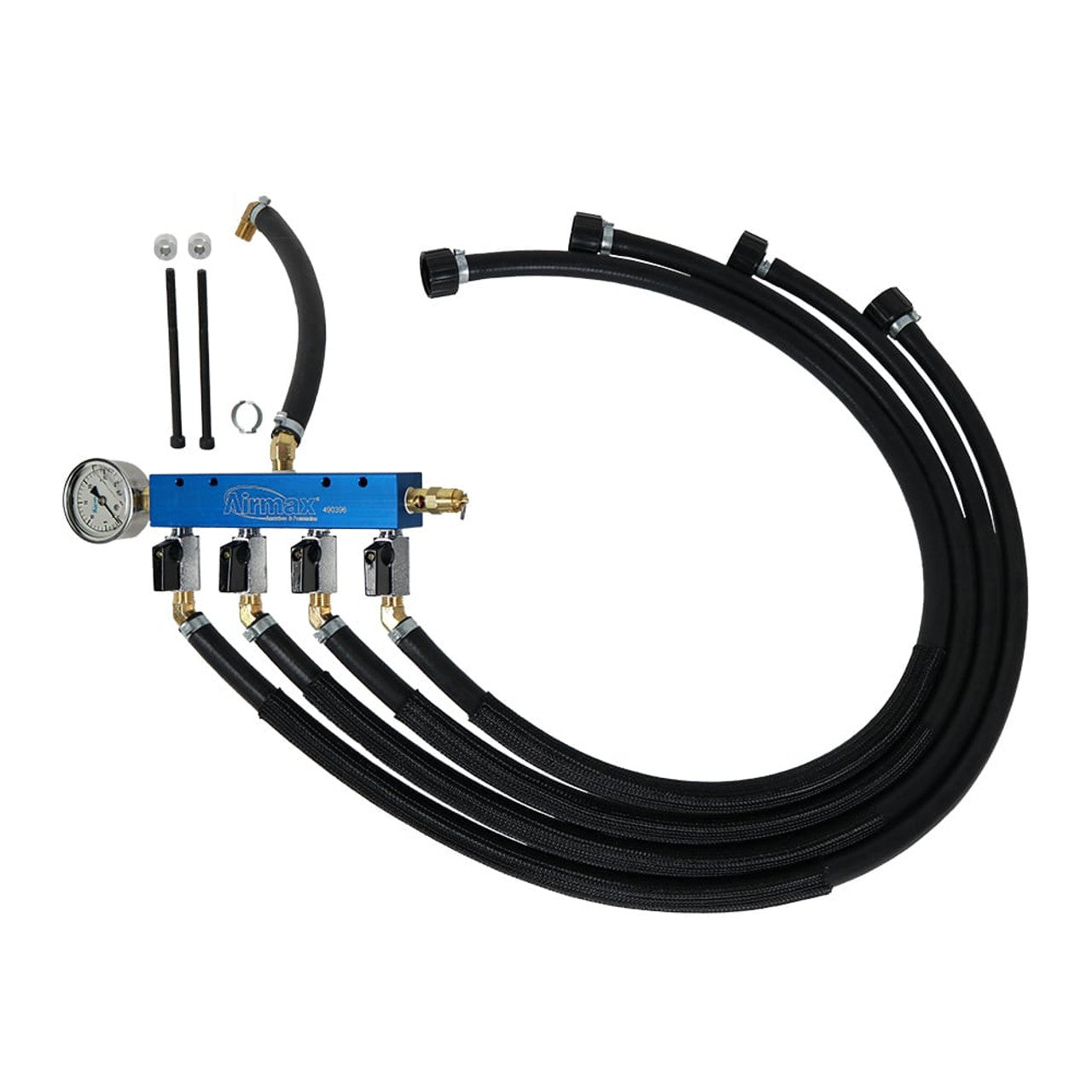

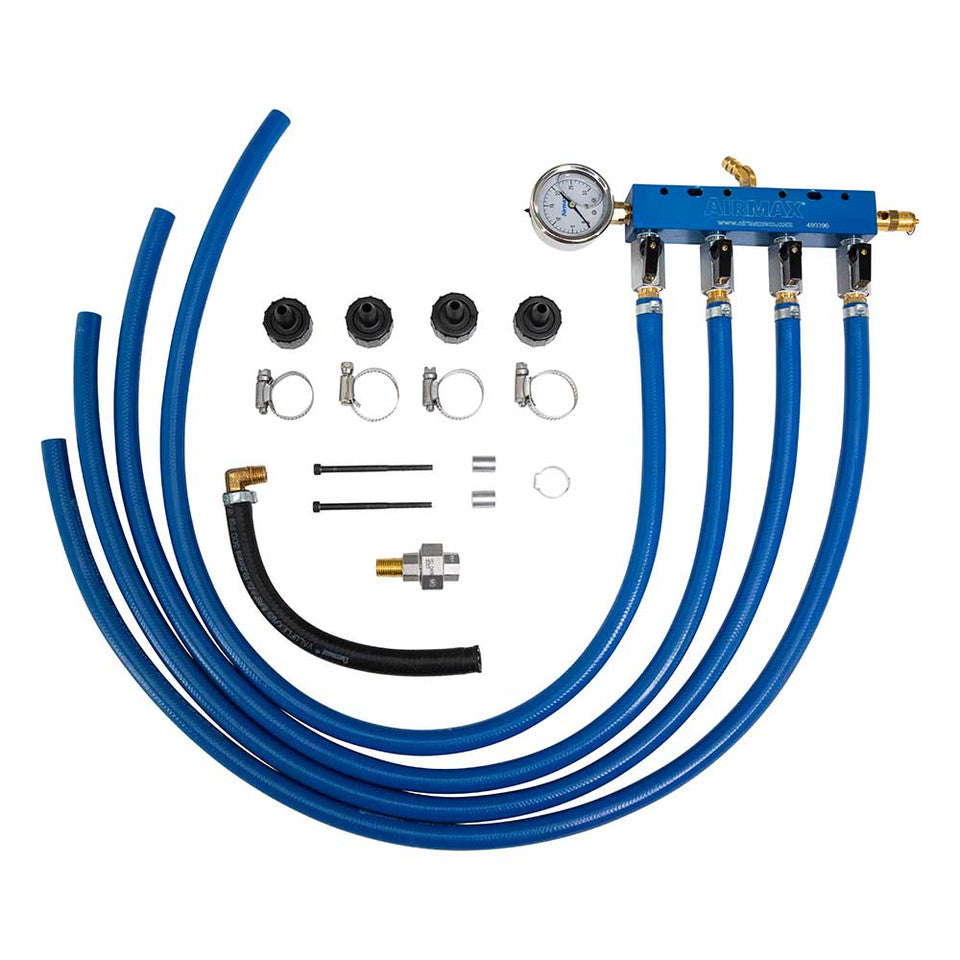

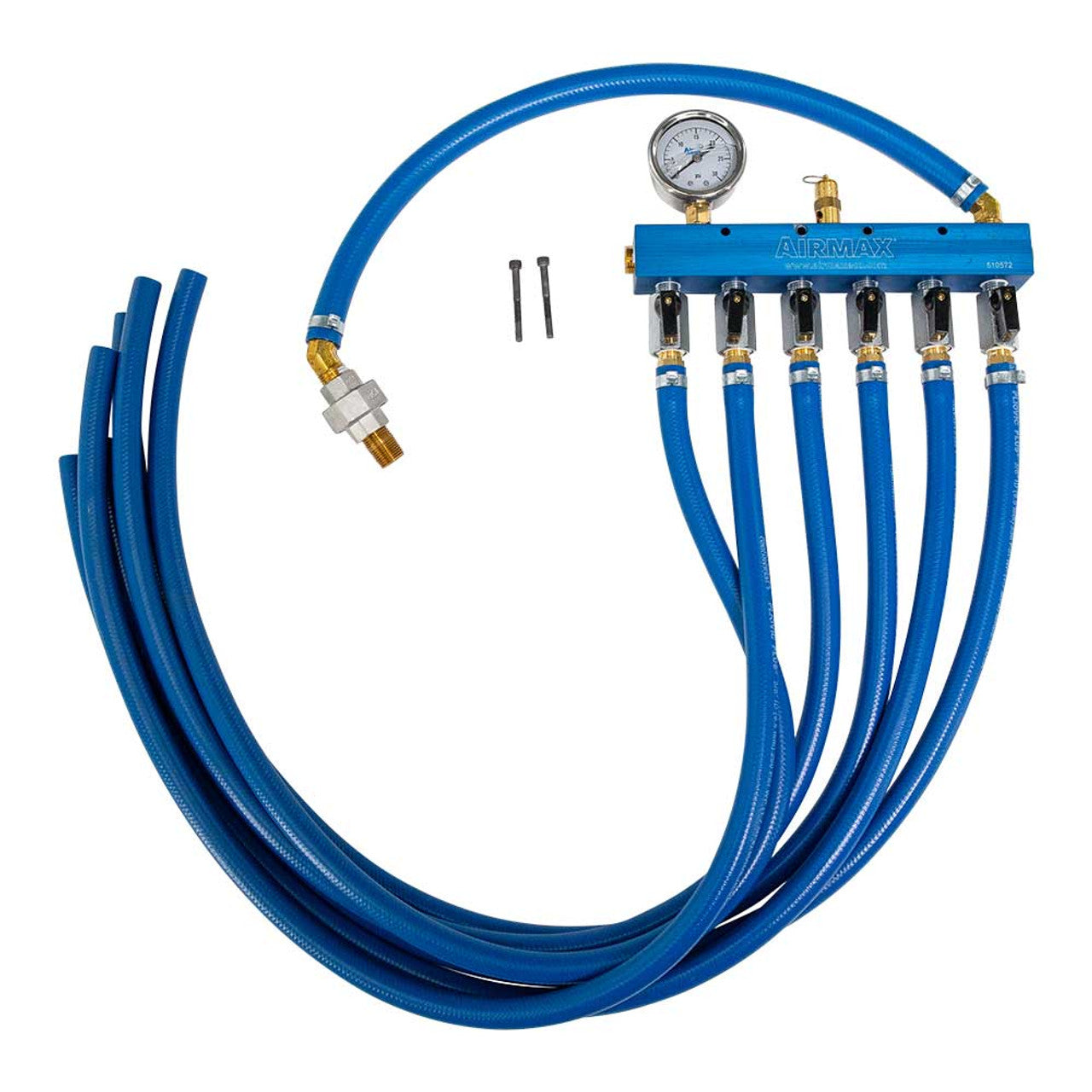

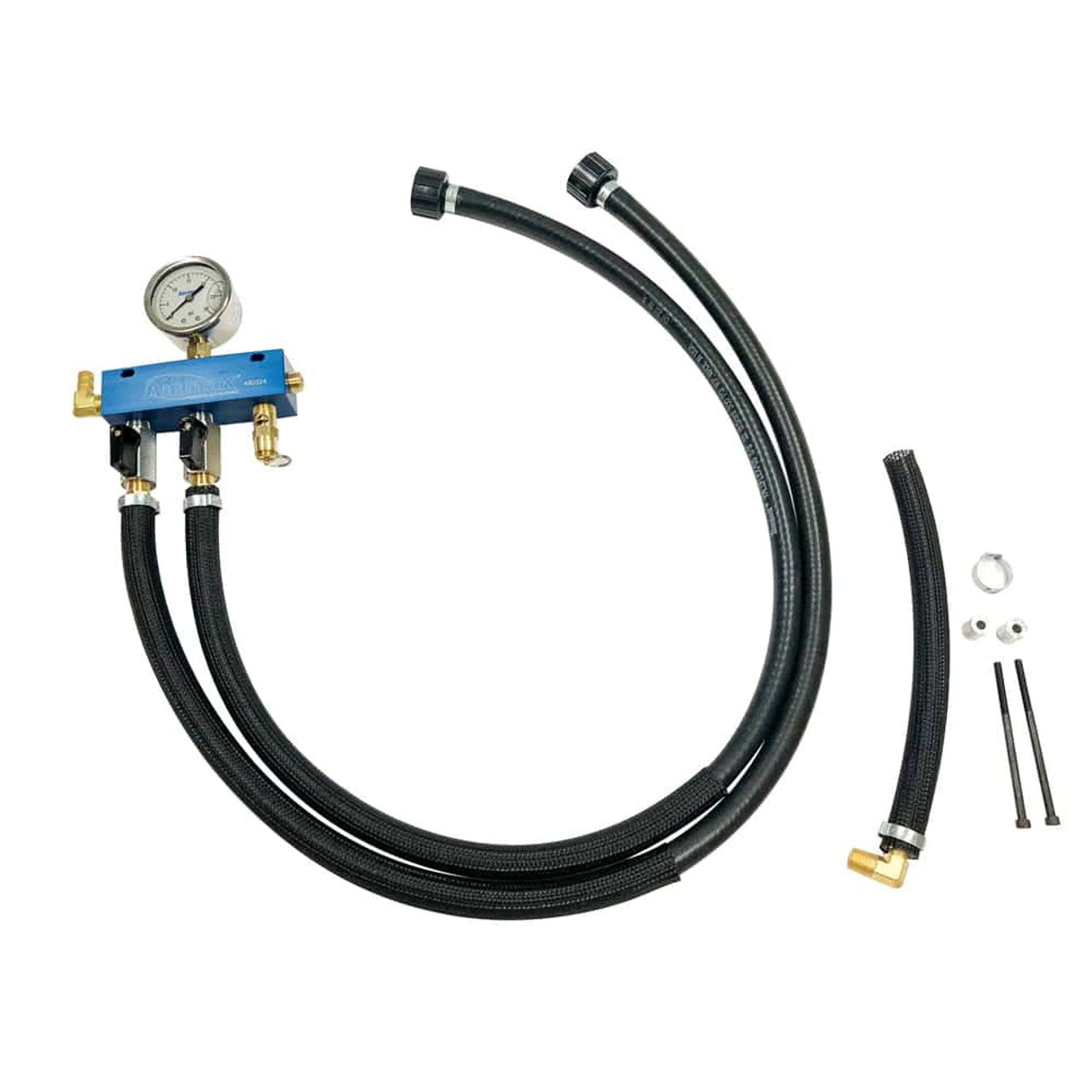

Airmax Airflow Manifold Assembly

$512.78
$640.98
System: LS40
Ask a Question

Ships in 2–14 business days, depending on availability.

Resources

Price Match Guarantee. Read more.

Return within 30 days of purchase.

Photo of Airmax Airflow Manifold Assembly
Airmax Airflow Manifold Assembly
$512.78
$640.98

The Airflow Manifold Assembly is designed to manage and balance airflow from an aeration compressor to individual diffuser lines. By allowing each line to be adjusted independently, it helps ensure even oxygen distribution across the pond or lake.

This assembly also provides built-in system protection and monitoring through an integrated pressure gauge and pressure relief valve. Quick-change fittings simplify maintenance and make seasonal system removal or storage easier when aeration is not operated year-round.

Why Choose the Airflow Manifold Assembly?

  • Individual Flow Control: Nickel-plated ball valves allow precise adjustment to each diffuser line.
  • System Monitoring: Integrated pressure gauge helps track system performance.
  • Compressor Protection: Pressure relief valve guards against backpressure.
  • Easy Maintenance: Quick-change fittings simplify servicing and seasonal storage.
  • Reliable Construction: Built for long-term use in pond and lake aeration systems.

PRO TIP

After installation, balance airflow by opening all valves evenly, then fine-tune each line while watching the pressure gauge. Proper balancing improves diffuser efficiency and extends compressor life.

  • Product Type: Airflow manifold assembly
  • Function: Air distribution and flow control
  • Valve Type: Nickel-plated ball valves
  • Pressure Gauge: Integrated
  • Pressure Relief Valve: Integrated
  • Quick-Change Fitting: Included
  • Compatibility: Pond and lake aeration systems
