Kasco J-Series Floating Fountains - SS Cord Protection

Kasco J-Series Floating Fountains combine visual appeal with reliable performance, creating stunning water displays that enhance ponds and lakes. With five interchangeable nozzles included, you can choose between bold geysers or graceful multi-tier patterns to suit your setting.

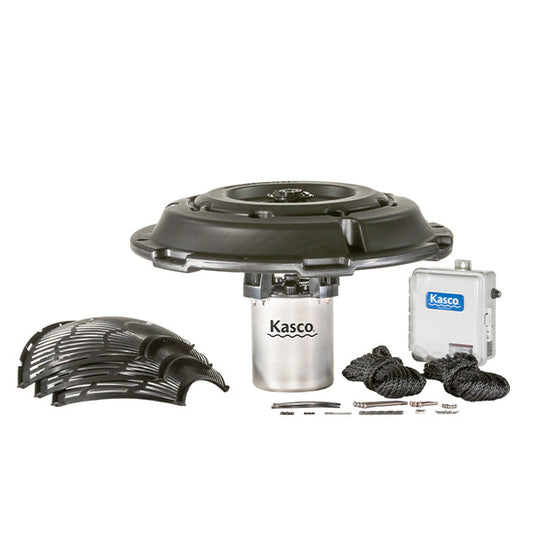

Available in a wide range of horsepower sizes, these fountains are designed to fit different applications, from small ponds to larger water bodies. Each package comes complete with motor, float, bottom screen, control panel, power cord, and mooring lines, making installation straightforward. Optional WaterGlow light kits add nighttime beauty with simple snap-on clips.

Why Choose Kasco J-Series Floating Fountains?

• Customizable displays: Includes five interchangeable nozzles for multiple spray patterns.
• Flexible options: Offered in several horsepower, voltage, and phase configurations.
• Complete package: Comes with motor, float, control panel, and accessories.
• Added beauty: Optional WaterGlow light kits create dramatic evening effects.
• Safe operation: Control panels feature GFCI protection for user safety.

Installation & Safety Tips

• Use GFCI protection: Test your GFCI breaker monthly to ensure safe operation.
• Stay clear when running: Never enter the water while the fountain is in use to avoid electrical or mechanical hazards.
• Proper anchoring: Anchor with 3 feet of horizontal mooring line for every foot of water depth for stability.

Maintenance & Service

• Inspect regularly: Check for reduced performance, clogs, or icing on a daily or weekly basis.
• Annual cleaning: Remove and clean the motor housing each season, especially in colder climates, to prevent overheating.
• Seal and oil service: Replace seals and oil every 3 years to extend motor life.
• Check zinc anode: Inspect every 2–3 months; replace if worn or chalky to prevent corrosion.

Nozzles & Water Quality

• Five included nozzles: From tall geysers to elegant tiered sprays for different visual effects.
• Premium nozzles: Optional upgrades like Magnolia and Mahogany create unique displays.
• Screen maintenance: Use 3/4" mesh for standard nozzles and 1/4" mesh for premium designs; clean regularly to maintain spray quality.

3/4HP & 1HP Patterns (60Hz)
Willow	Sequoia	Cypress	Linden	Birch

2HP - 7.5HP Patterns (60Hz)
Balsam	Linden	Spruce	Redwood	Birch

Winter Storage

• Remove before freezing: In cold climates, take out the fountain in fall to prevent ice damage.
• Store properly: Keep motor stored upright so seals remain lubricated and oil stays in place.

PRO TIP

Rotate nozzles seasonally to vary the look of your water feature. Taller sprays create dramatic effects in summer, while wider, lower displays are less wind-sensitive in spring and fall.
