Kasco VFX Series Aerating Fountains

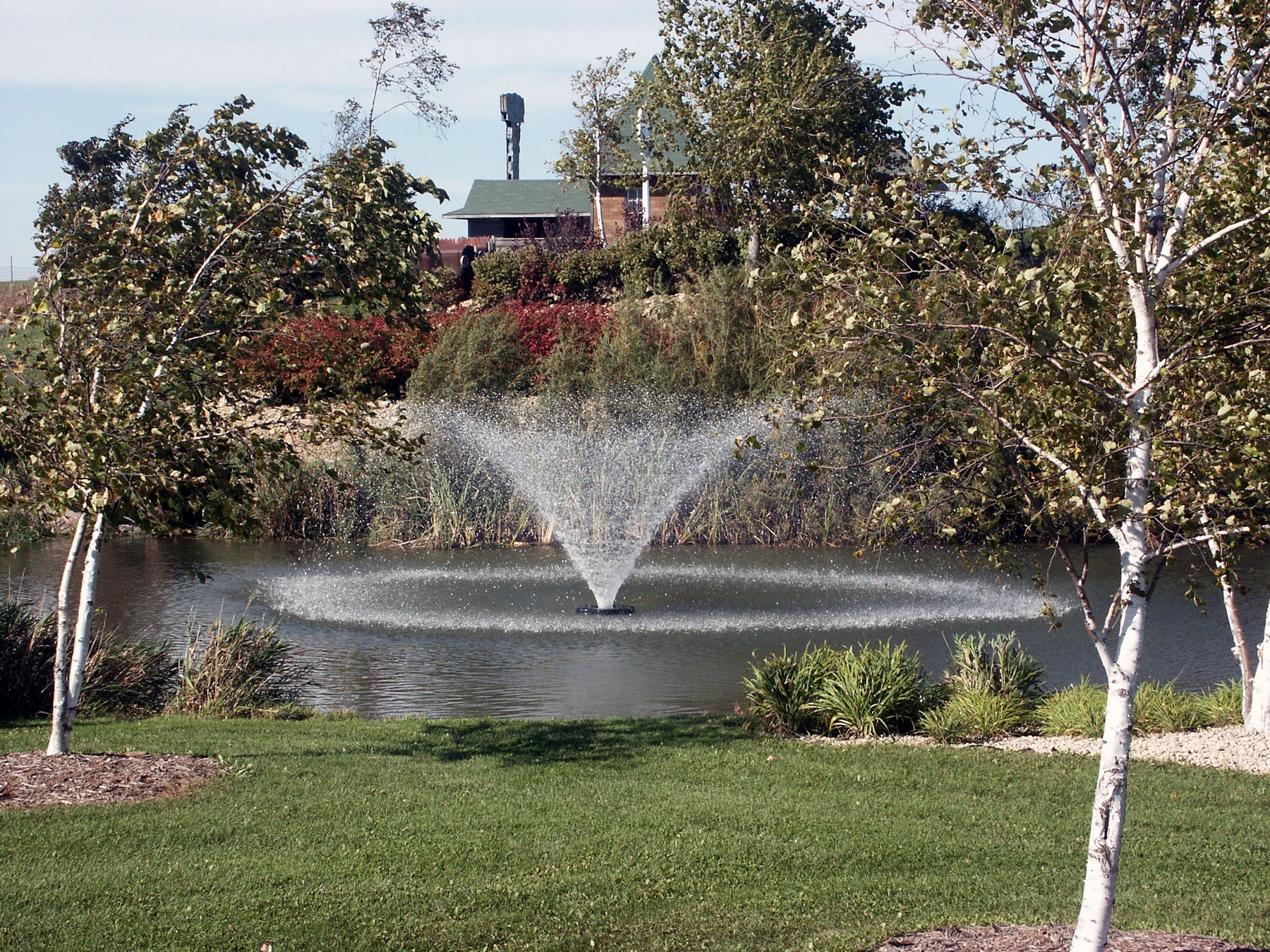

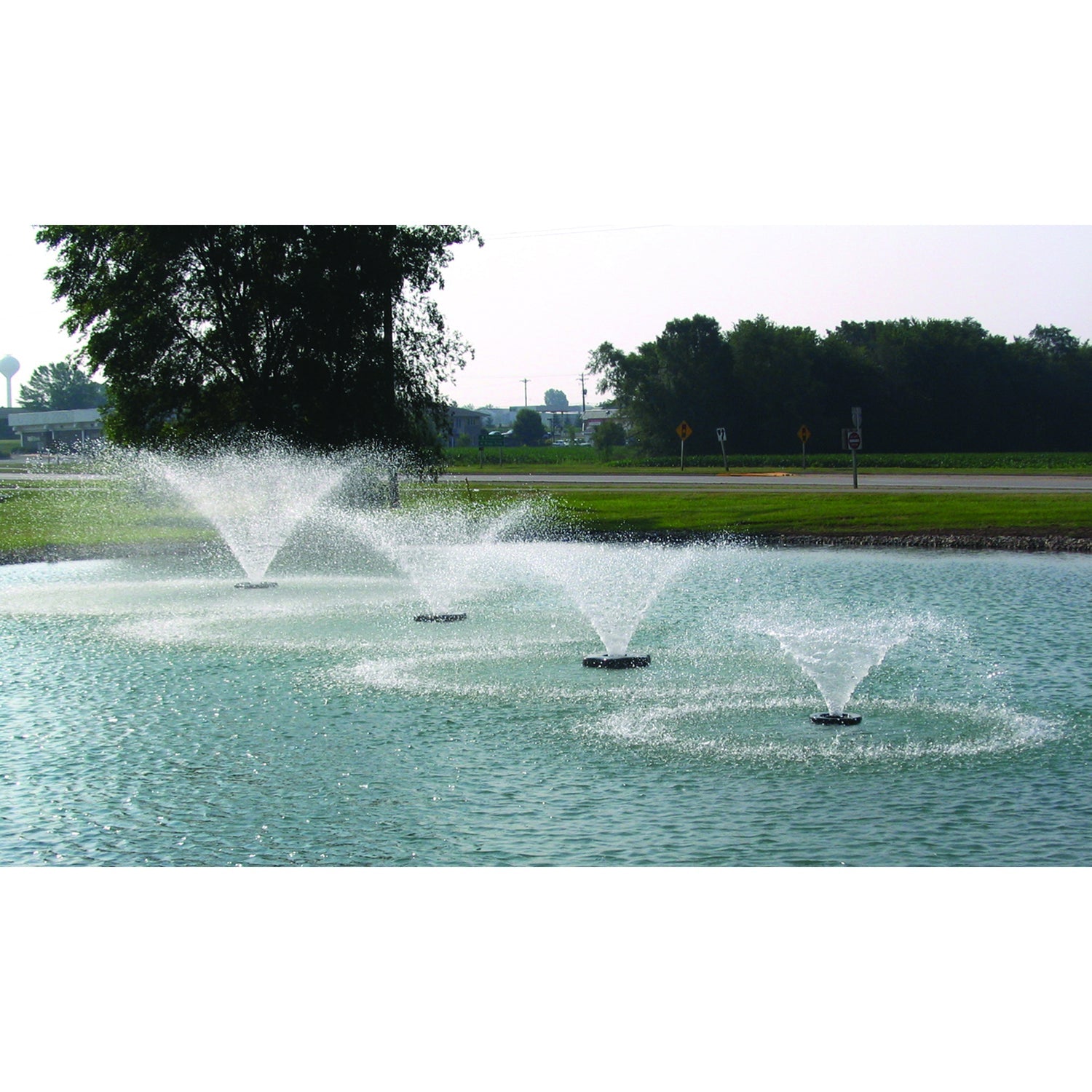

Kasco VFX Series Floating Fountains deliver a striking V-shaped display while providing robust aeration benefits for ponds and lakes. These high-flow units are efficient, easy to install and operate, and available in multiple horsepower options to match a wide range of water bodies. Optional WaterGlow light kits can be added for dramatic evening effects.

Key Features

• Hybrid performance: Elegant V-shaped display with strong aeration and circulation.
• Model range: 1/2, 3/4, 1, 2, and 5 HP options in 60 Hz or 50 Hz, 120V or 208-240V, single or three phase.
• Shallow operation: Operates in as little as 17.5 in. of water (model dependent).
• Complete package: Motor unit, float, bottom screen, control panel with GFCI protection, mooring lines, power cord.
• Warranty: 2 years on 1/2, 3/4, 1 HP units and 3 years on 2 and 5 HP units. Optional extended coverage may be available.

Why Choose VFX Series?

• Water quality boost: High-volume flow helps destratify water, increase dissolved oxygen and support fish health.
• Reliable display: V-pattern maintains a crisp shape across a range of conditions while still moving serious water.
• Flexible power options: Multiple voltage and phase choices simplify matching site power.
• Straightforward setup: Twist-and-lock components and included control panel streamline installation.

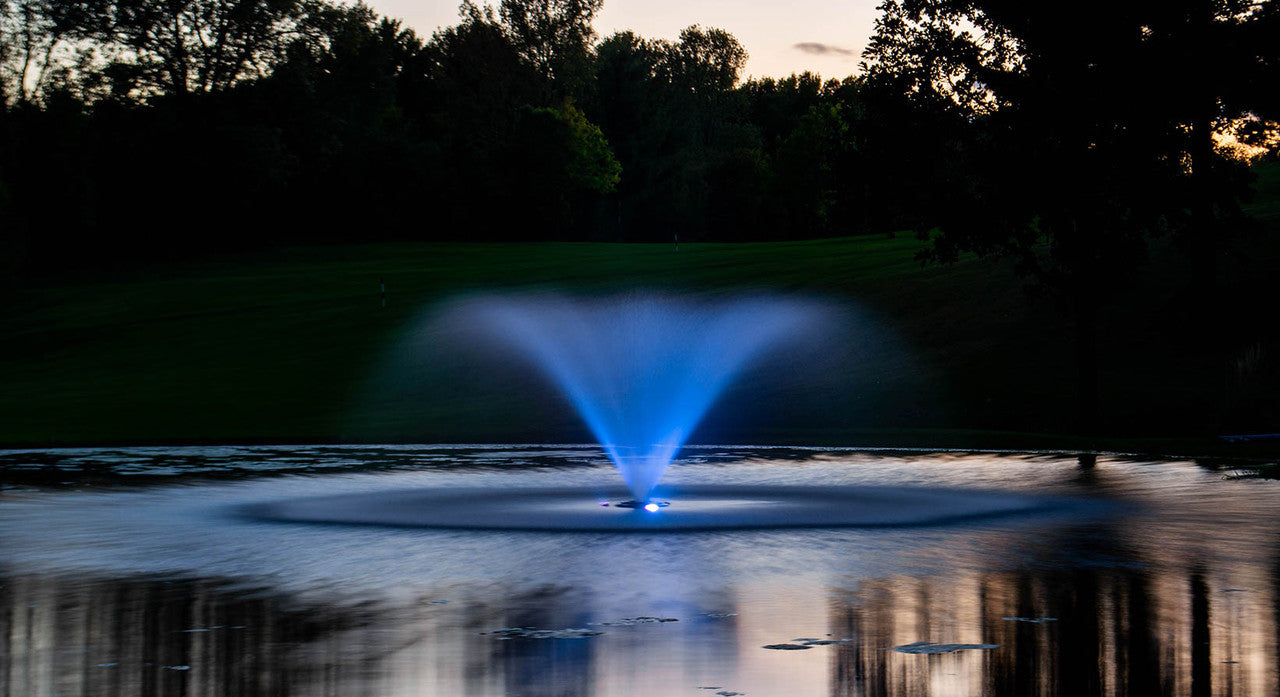

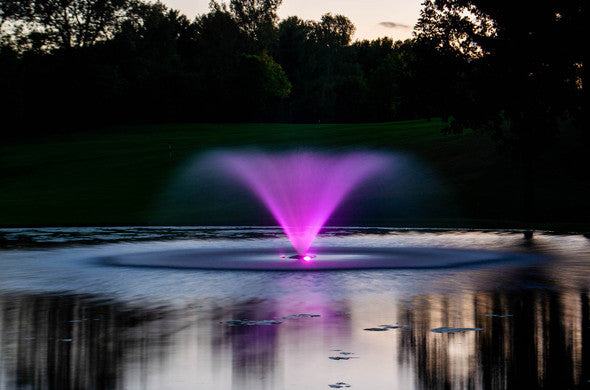

• Nighttime appeal: Optional lighting enhances aesthetics after dark without complicating installation.

Installation & Safety Tips

• GFCI protection: Use the included control panel and test GFCI monthly.
• Mooring guideline: Aim for about 3 ft of horizontal mooring line per 1 ft of water depth for stable positioning.
• Cable routing: Keep the power cord clear of prop wash and sharp edges. Use strain relief where appropriate.
• No dry runs: Never operate the fountain out of water to avoid seal damage and overheating.
• Stay clear when running: Do not enter the water while the unit is operating. Disconnect power before servicing.

Maintenance & Service

• Routine checks: Inspect spray height and shape, listen for unusual noise, and verify panel indicators.
• Screen care: Clean bottom screen and intake areas regularly to prevent flow restriction and spray distortion.
• Housing cleaning: Remove algae and mineral scale from the motor housing each season for proper cooling.
• Anode inspection: Check the zinc anode every 2–3 months. Replace if more than half consumed or chalky.
• Seal and oil service: For heavy seasonal use, plan preventative seal and oil replacement roughly every 3 years.

Nozzles, Spray Quality & Water Management

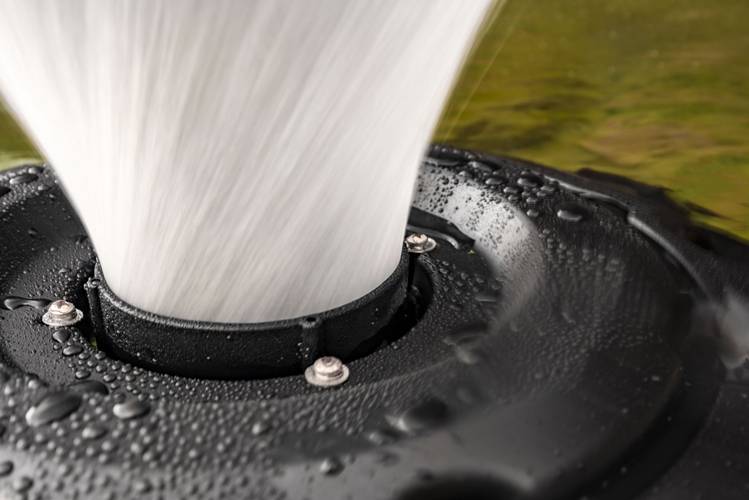

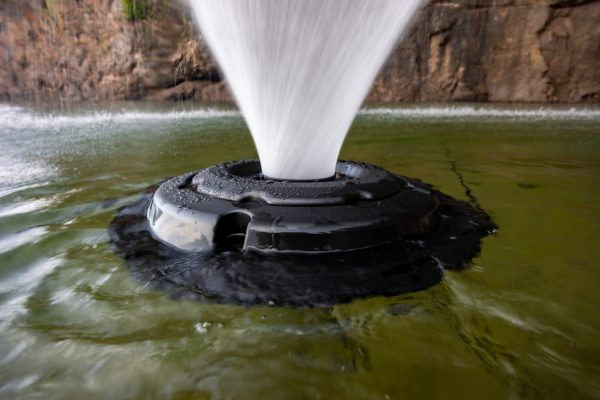

• Consistent pattern: The V-pattern is designed for both aesthetics and oxygen transfer in the upper water column.
• Debris control: Keep nearby vegetation trimmed and skim floating debris to maintain a clean spray.
• Screen mesh: Use appropriate intake screening and clean it frequently if the pond has heavy organic load.
• Wind strategy: In windy locations, consider siting the fountain upwind of viewing areas to limit overspray.

Winter Storage

• Remove before ice: In freezing climates, pull the unit before hard freeze to prevent ice damage.
• Dry and store: Rinse, dry and store the fountain in a cool, dry place. Keep the unit upright and protect the cord ends.
• Off-season check: Inspect cord, float hardware and fasteners during storage to simplify spring commissioning.

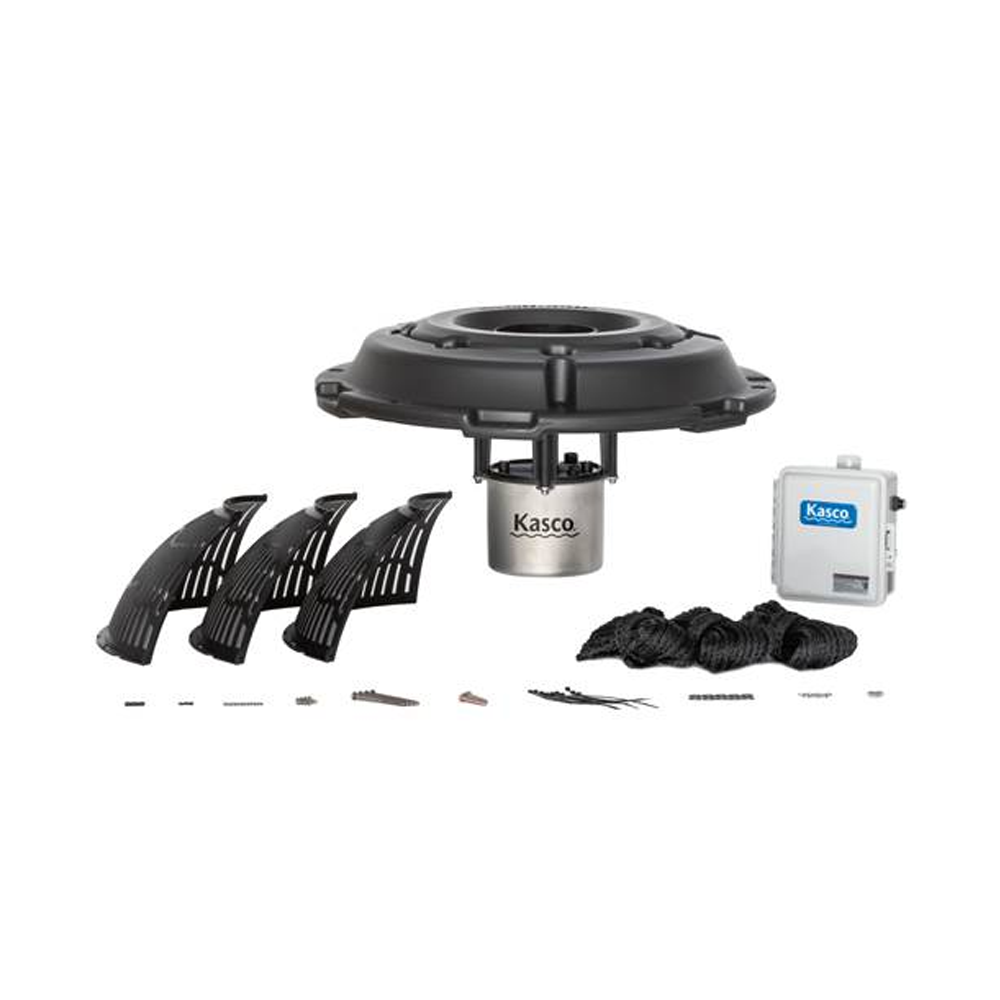

Included Components

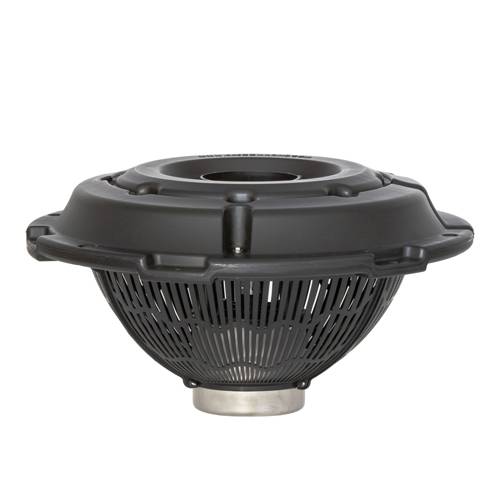

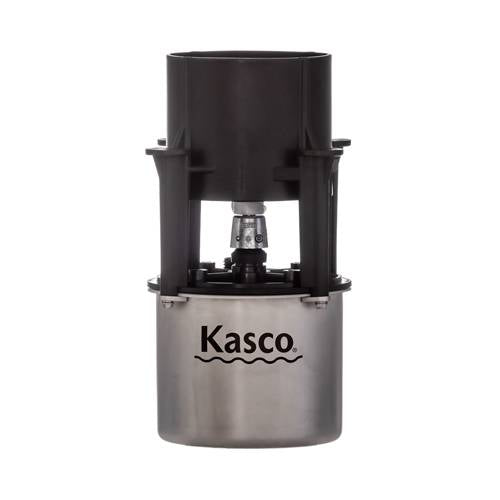

• Motor unit and float
• Bottom screen
• Control panel with GFCI protection
• Mooring lines and power cord

PRO TIP

Plan your fountain’s placement with prevailing winds in mind. Centering slightly upwind of the primary viewing zone keeps the V-pattern framed over open water, reduces overspray on shorelines and helps push floating debris toward convenient collection points.
